// COMMUNITY BUILD

MESHROOM S V2 (ATX LC)

BY L91L91 2026-10-21T10:01:21+00:00 ssupd Meshroom S V2 (with extender bracket)

VIEW CASE DB ↗VIEW CASE IN 3D ↗ALL BUILDS
CASEssupd Meshroom S V2 (with extender bracket)
COLOURBlack
LAYOUT / MODE4-Slot Mode
BUILDER-REPORTED FITStandard Fit
FROM THE USER

BUILD NOTES

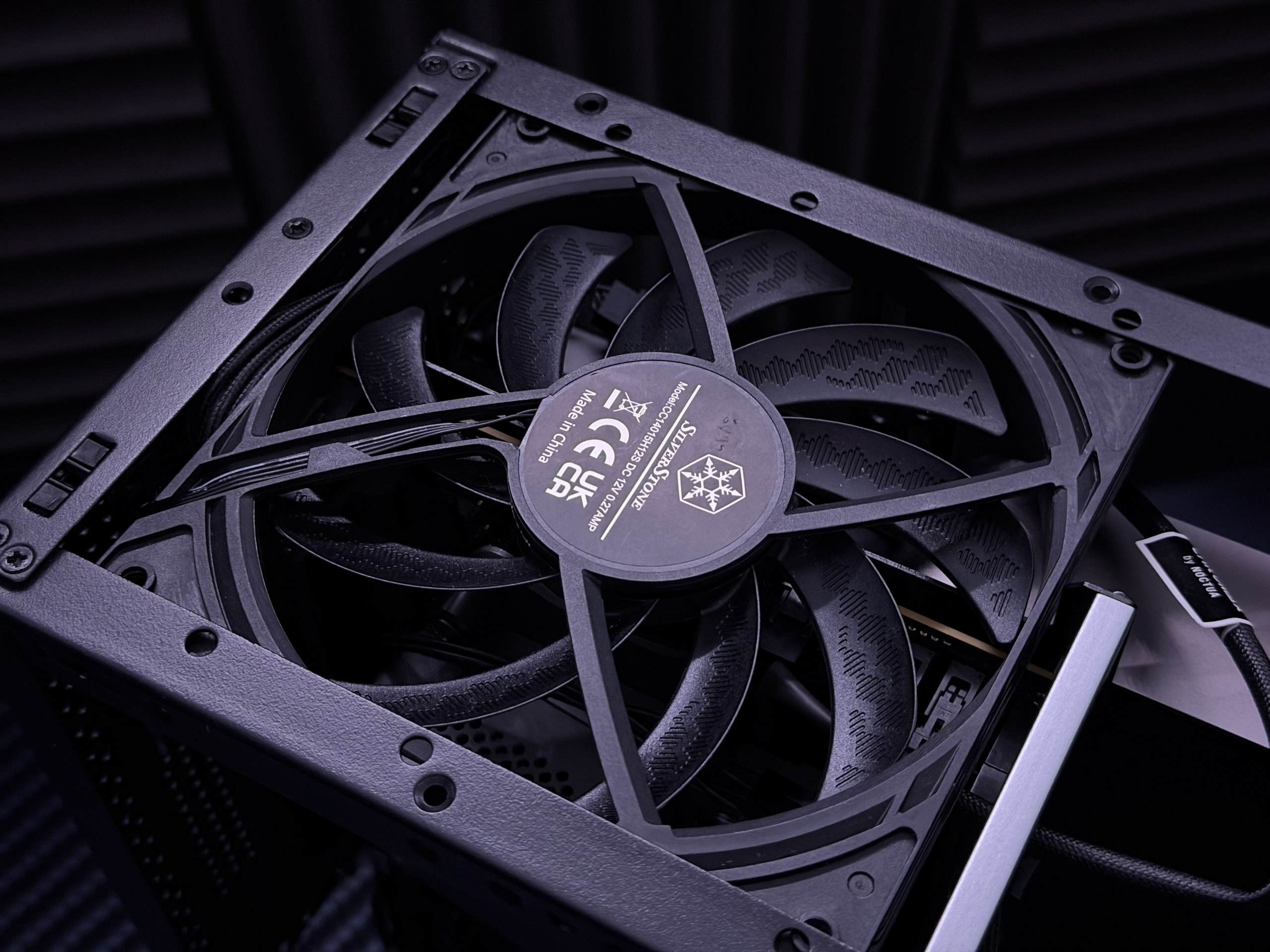

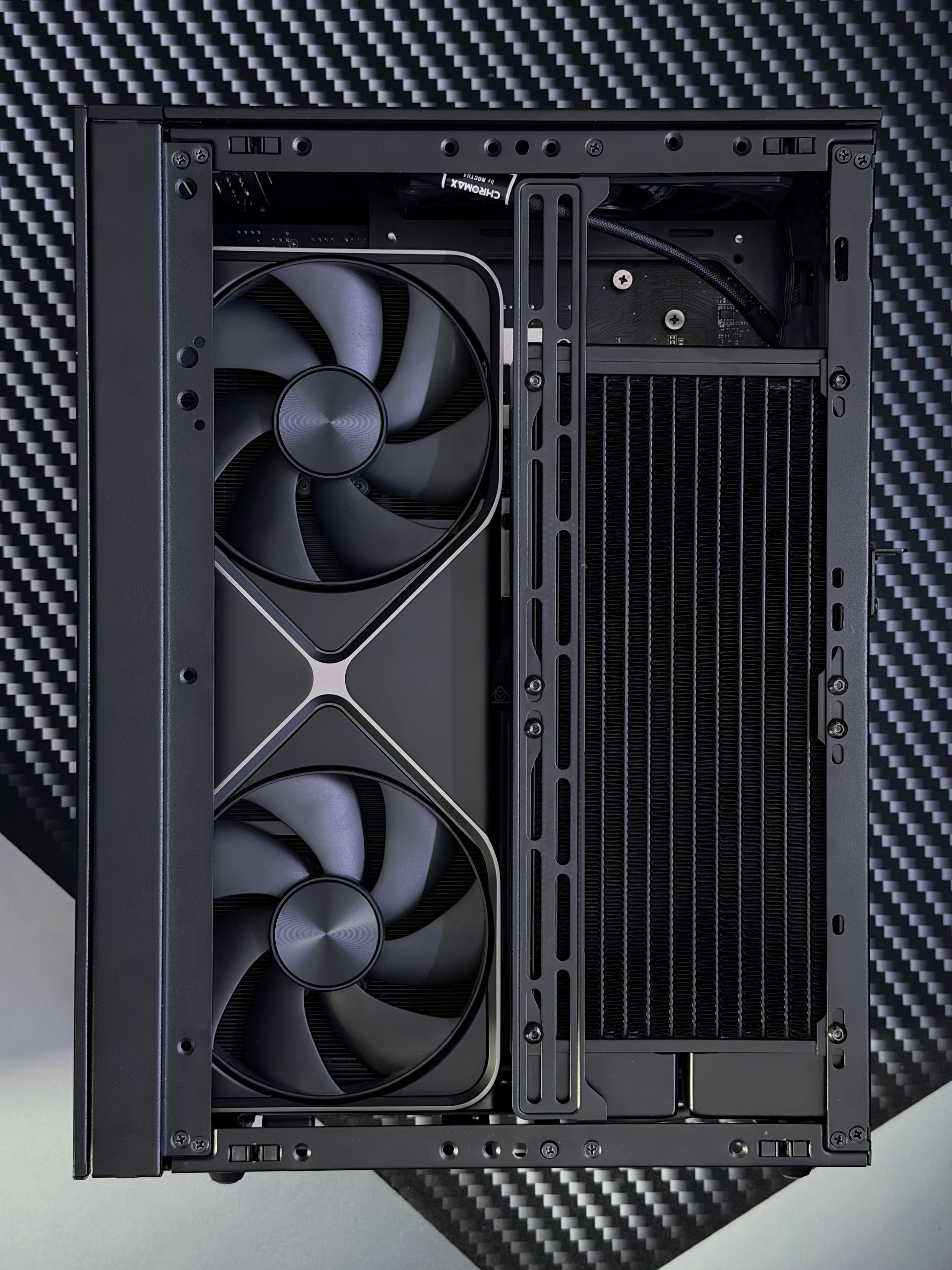

ATX meets SFF 🫶 dense. 17L build featuring MSI B650 Tomahawk ATX motherboard, Nvidia RTX 5080 FE, 240x20mm radiator with 2x NF-A12 Chromax.Black fans cooling the R7 7800X3D. Corsair SF1000 2024 with custom black low-profile cables. 2x 140 Air Slimmer case fans, one located at top and one at front-bottom of the case. I used 290mm coaxial style straight 180 degree riser cable from Velkase, which is unfortunately no longer available. It’s tad too tight imo, but works…
SUBMITTED CONFIGURATION

HARDWARE

MOTHERBOARDASRock B850I Lightning WiFi [ITX] (AM5)
MEMORY (RAM)G.Skill Flare X5
GRAPHICS CARDNvidia RTX 5080 16GB GDDR7 Founders Edition
PROCESSORAMD 7800X3D (AM5)
CPU COOLERModultra LOBO
AIO / RADIATORSAlphacool NexXxoS ST20 240
CASE FANS2x Noctua NF-A12 Chromax, 2x SilverStone Air Slimmer 140
POWER SUPPLYCorsair SF1000 Platinum ATX 3.1 (1000W)
BUILDER EXPERIENCE

FITMENT

BUILDER SUPPLIED
REPORTED OUTCOMEStandard Fit
AFFECTED AREAS
GPU / SIDE PANEL — GPU POWER — PSU CABLING — CPU COOLER — AIO / RADIATOR — MOTHERBOARD — RAM / COOLER — CASE CONNECTOR — RISER — MOUNTING — OTHER —

Reported from this completed Build. Community evidence is advisory and does not replace published component or case specifications.
