BC1 Mini v2 is widely considered the best open testbench for ITX. It features the familiar design and form factor of the original BC1 Mini. It has however been re-designed to be more environmentally friendly, robust and functional. The BC1 Mini v2 is available for purchase via QuietPC, Streacom, and multiple other sources. SPECIFICATIONS MODEL BC1 Mini v2 DIMENSIONS 230×190×78mm (L×W×H) MATERIALS 100% AL5052 Aluminium (Heavy Duty), 100% SS304 Steel SURFACE FINISH Sandblasted 80 Grain, “White Mate”, “Black”, “Titanium” Anodising …
HZMOD XQ69 (Sentry 2.0 Clone)
HZMOD XQ69 is steel Mini-ITX at 7.5L in volume. The XQ69 is a near one for one clone of the popular, yet discontinued Dr Zaber Sentry 2.0. The current revision of the HZMOD XQ69, is the v4.1. SPECIFICATIONS DIMENSIONS 323 x 69 x 339mm (L x W x H) VOLUME 7.55L (including stand) MATERIALS Galvanised Steel EXTERNAL I/O 2x USB 3.0 Type-A, Power Button (LED) MOTHERBOARD SUPPORT Mini-ITX MAX CPU COOLER HEIGHT 50mm EXPANSION SLOTS 2 MAX GPU LENGTH 320mm …
IQUNIX ZX-1
IQUNIX ZX-1 is CNC aluminium Mini-ITX case starting 9.2L in volume for the air cooling version and 10.6L for the liquid cooling version. Case pricing starts at US$219 and ships to most countries. Use our affiliate link and code ITX-L91 at checkout for $20 saving. IQUNIX ZX-1 AIR COOLING WATER COOLING DIMENSIONS 330 x 149 x 217mm (L x W x H) 330 x 149 x 250mm (L x W x H) VOLUME 9.2 Litres (internal) 10.6 Litres (internal) MATERIALS …
FORMD T1

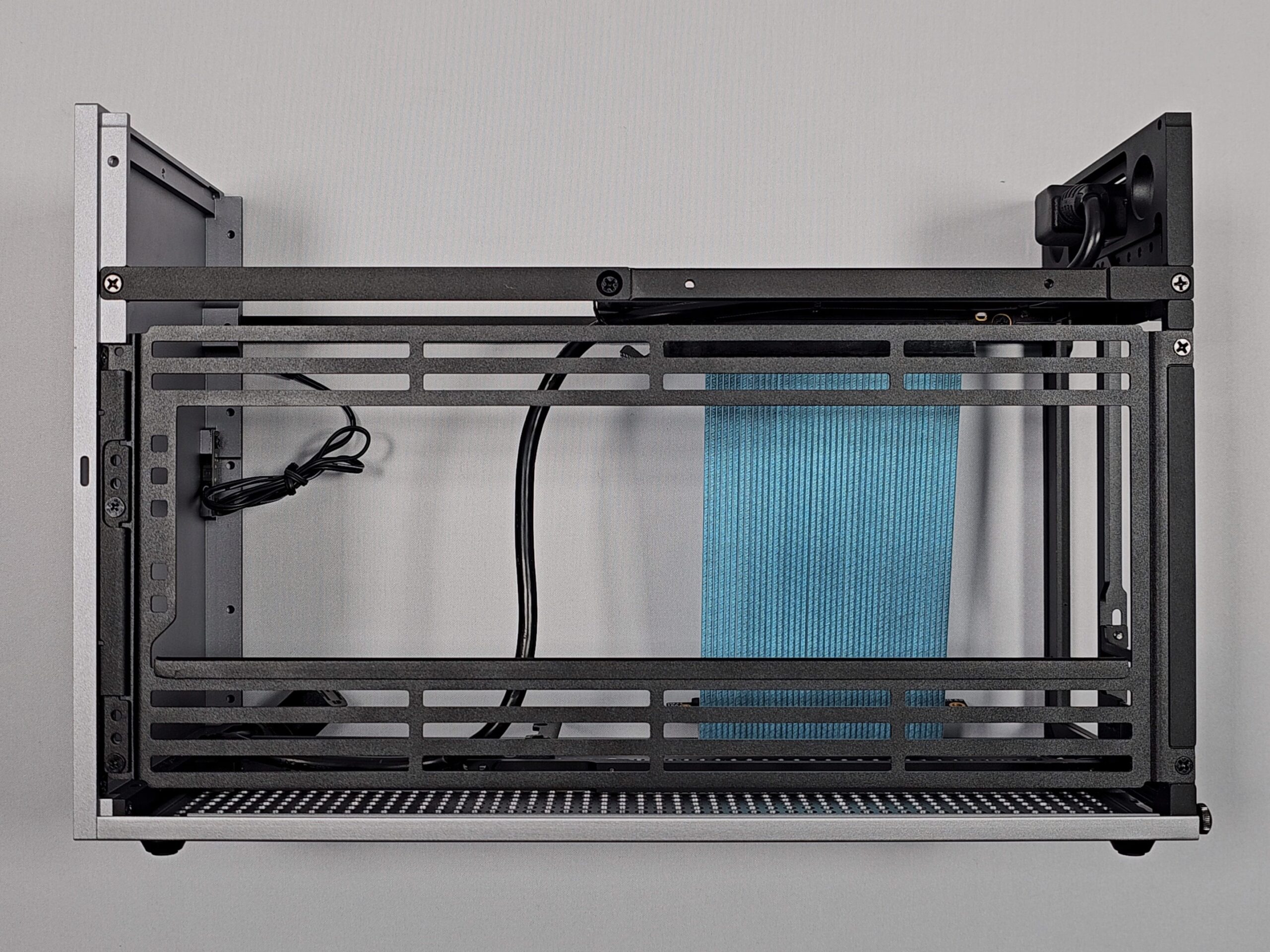

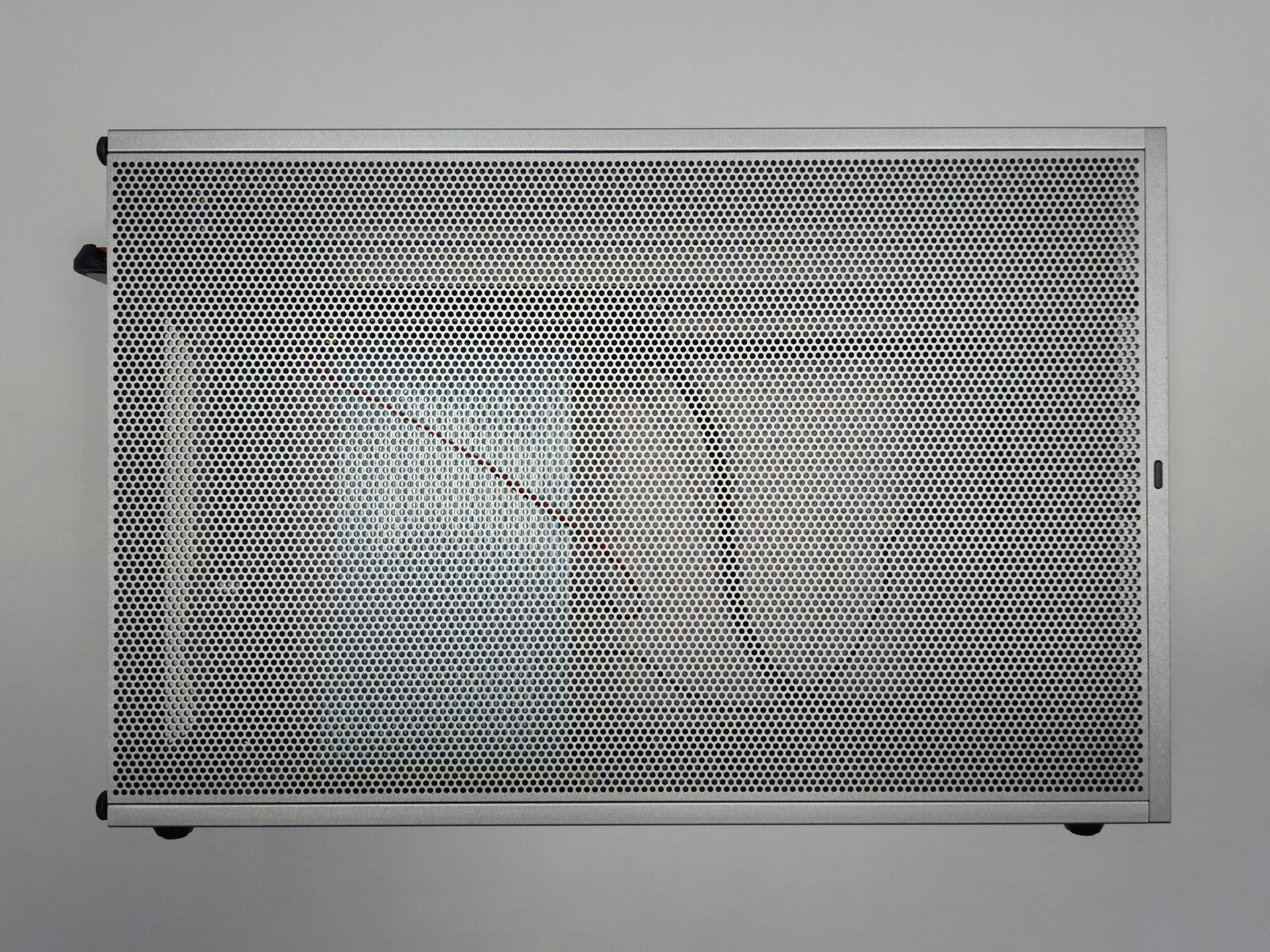

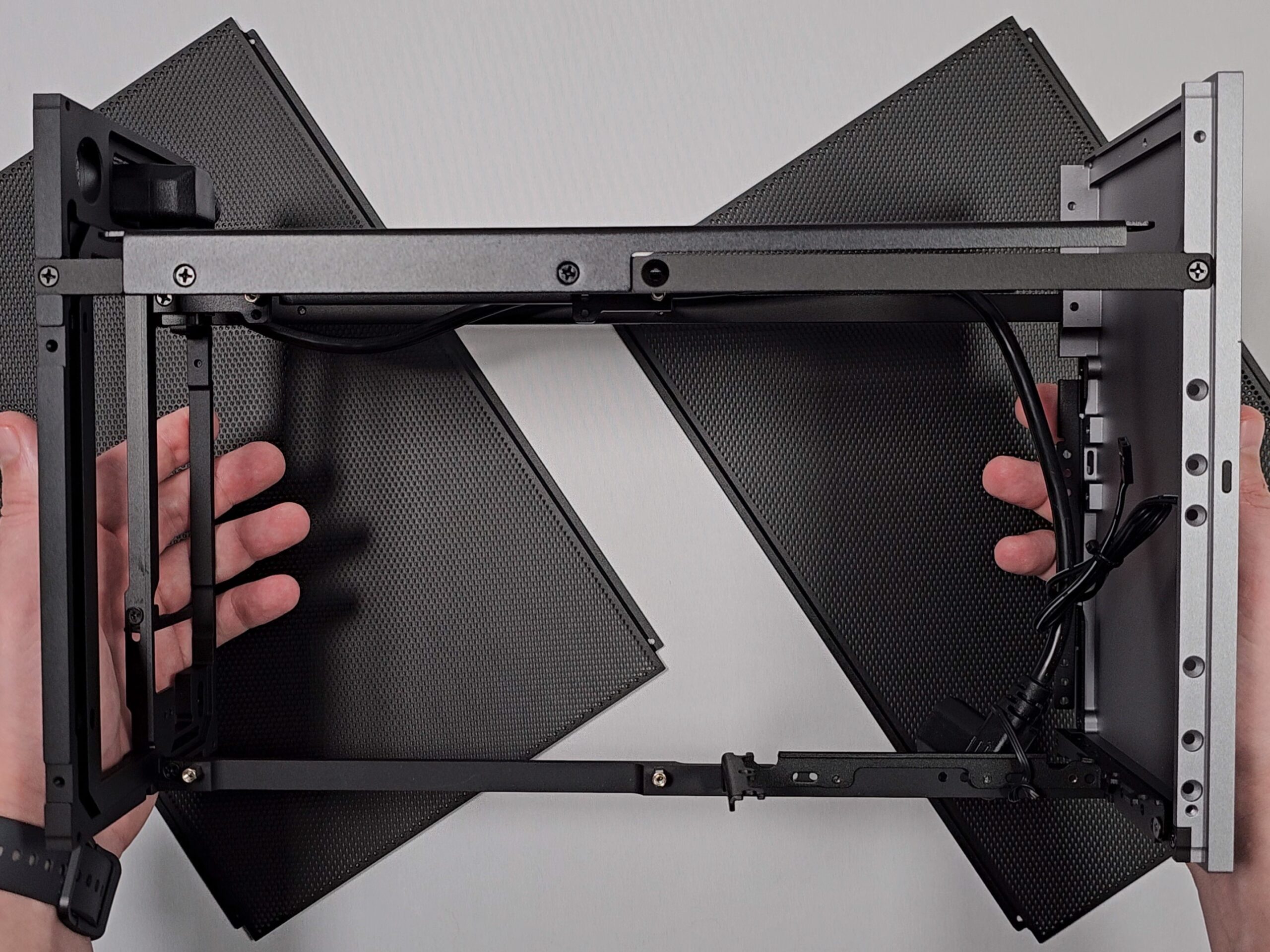

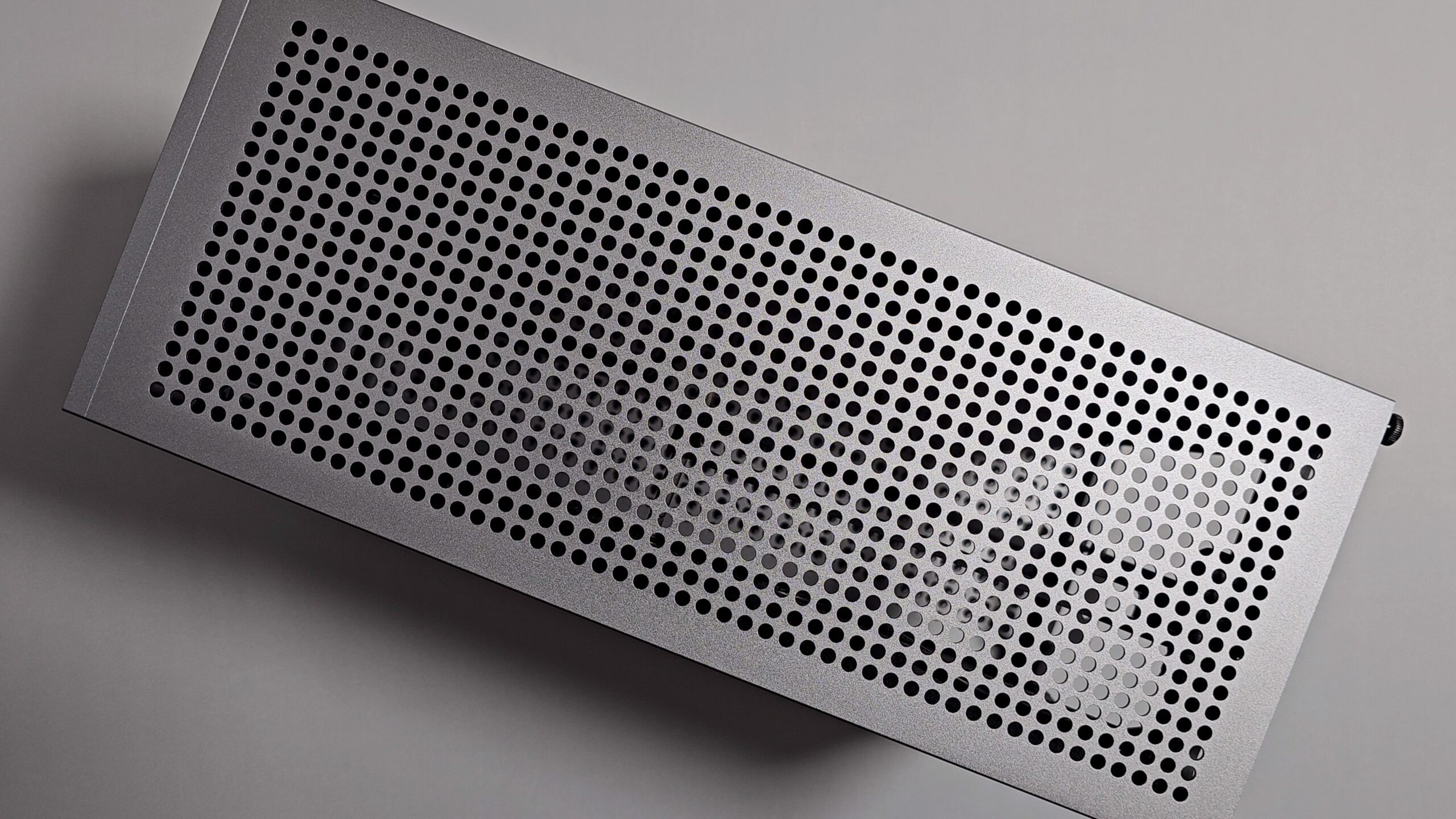

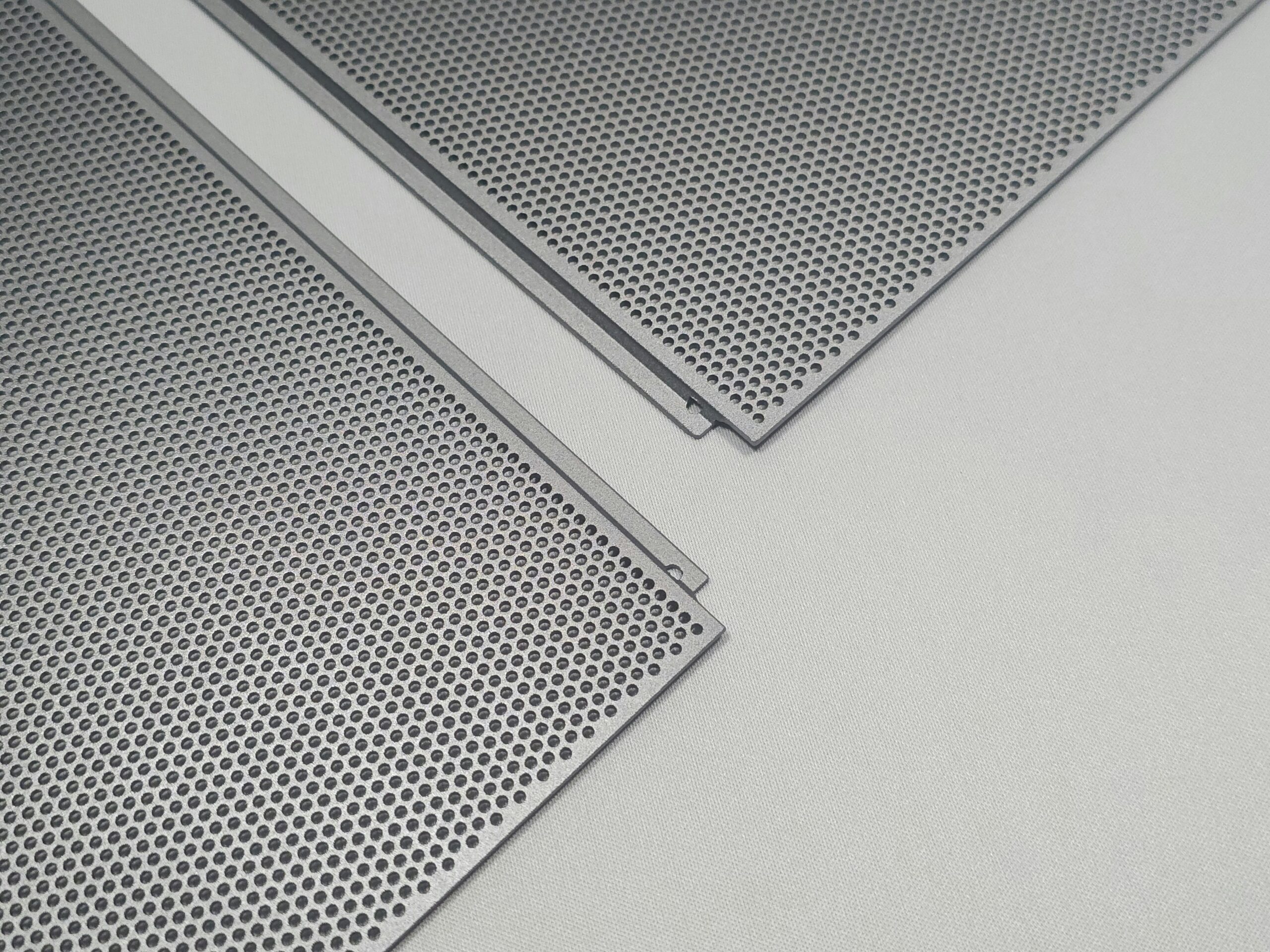

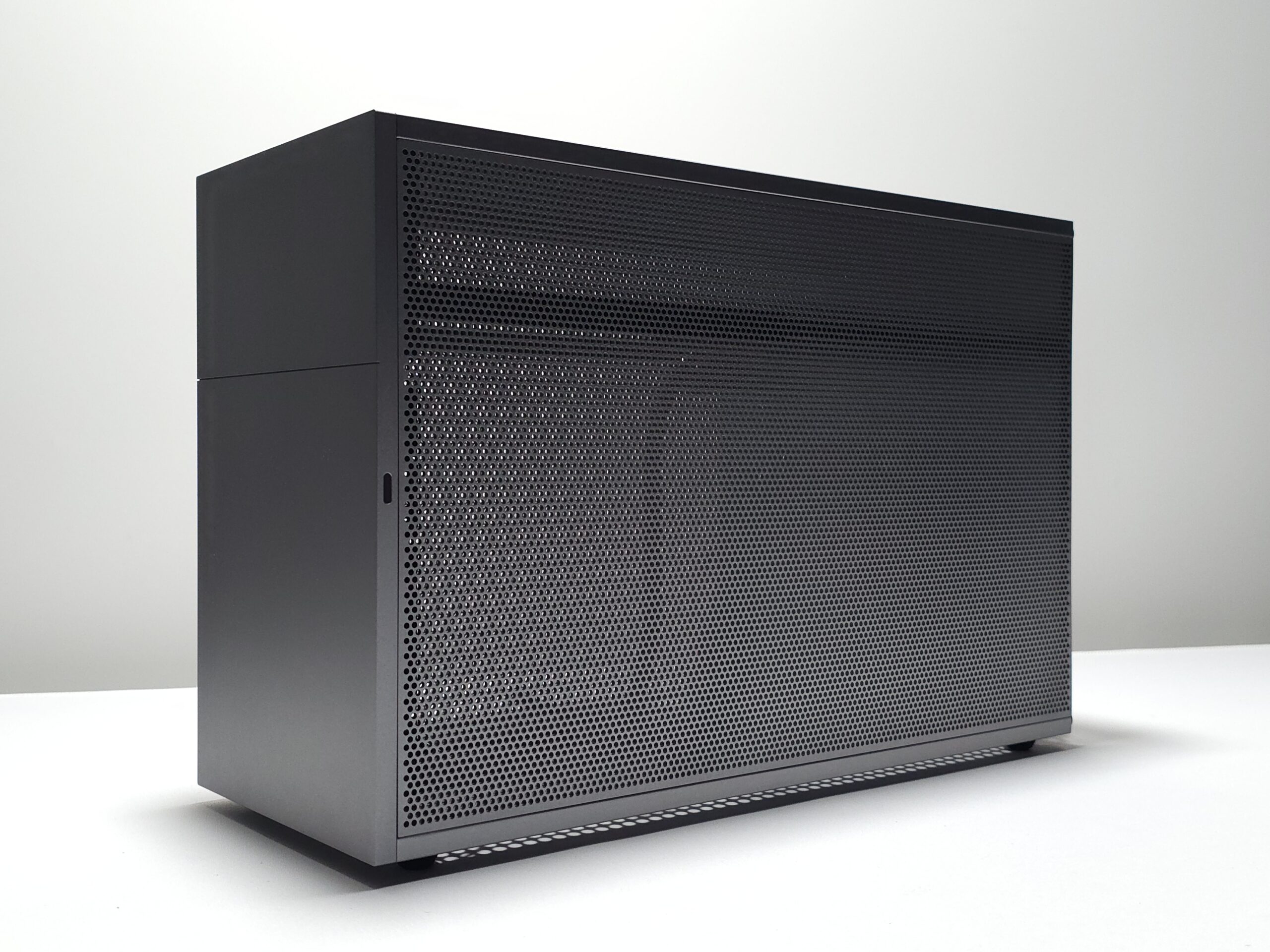

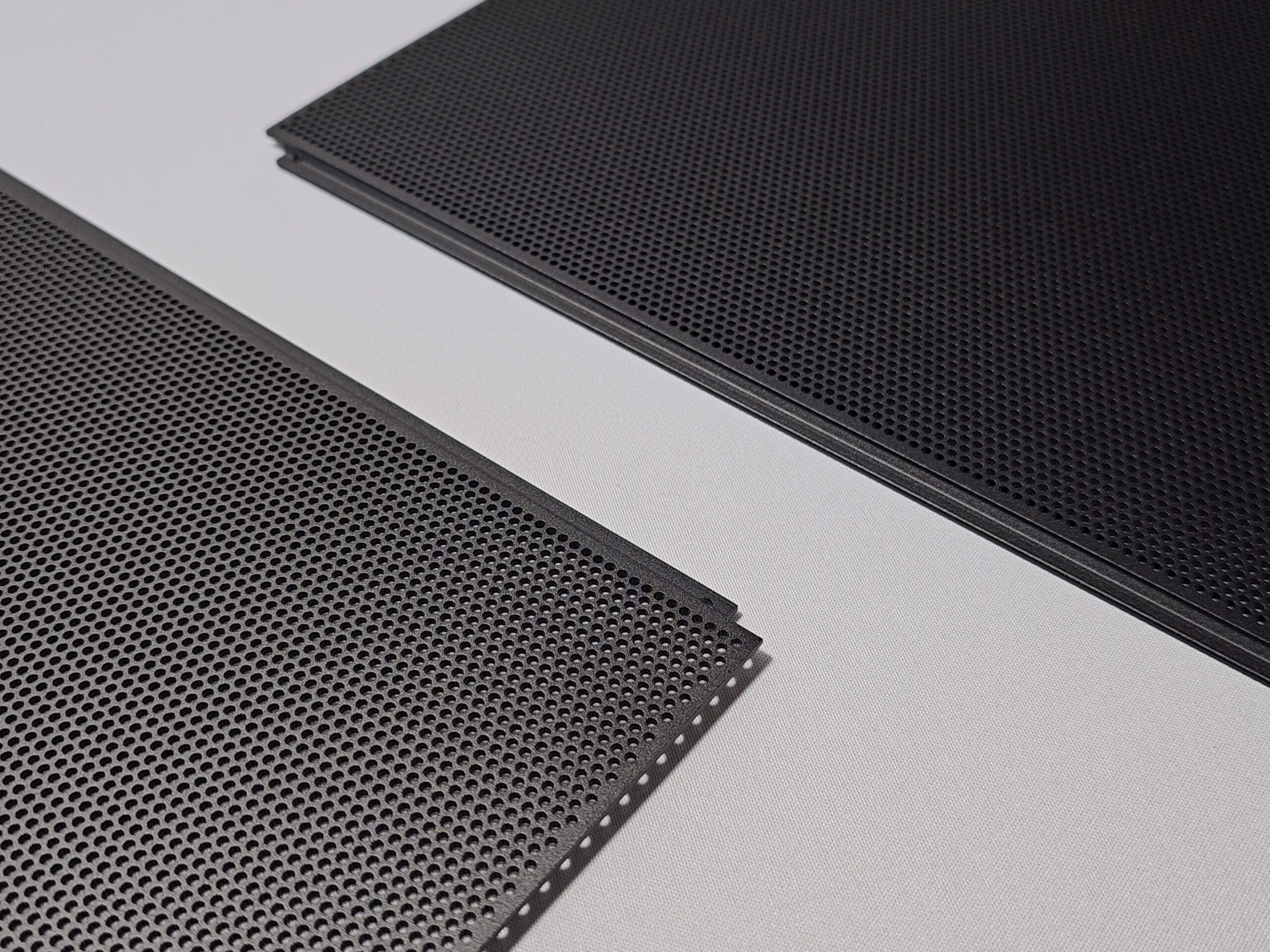

The FormD T1 is a modular Mini-ITX case under 10L in volume. FormD comes in two variants, reference and sandwich kit. Case pricing starts at US$195 for sandwich kit and is available in multiple colours. Optional accessories, include the T1 Essential Pack and Fittings Pack. Check the FormD webstore for more info. SPECIFICATIONS MODEL FormD T1 v2.1 (Sandwich Kit) OVERVIEW T1 – Sandwich Kit allows for better graphics card compatibility & more build configurations vs. reference kit. MATERIALS 1.5~15mm CNC …
Velka 3-RL (EOL)
Velka 3-RL is an aluminium HTPC case at 4.4L in volume. The Velka 3-RL EOL and no longer available. VOLUME 4.4 Litres MATERIALS Aluminium I/O N MOTHERBOARD COMPATIBILITY Mini-ITX MAX CPU COOLER HEIGHT 70mm GPU COMPATIBILITY N POWER SUPPLY COMPATIBILITY FlexATX (150 x 80 x 40mm) 2.5″ / 3.5″ DRIVES SUPPORTED 1x 2.5″
Velka 5
Velka 5 is premium Mini-ITX case at 4.9L in volume. The Velka 5 can be purchased on Velkase.com for US$179.99, excluding riser cable. SPECIFICATIONS MODEL v2.1 v3 DIMENSIONS 180×100×280mm (L×W×H) 178×102×283mm (L×W×H) VOLUME 4.9 Litres 5.1 Litres MATERIALS AluminiumGalvanised & Stainless Steel Galvanised Steel (Powdered Coated) I/O N N MOTHERBOARD COMPATIBILITY Mini-ITX Mini-ITX MAX CPU COOLER HEIGHT 37mm 37mm EXPANSION SLOTS 2 2 GPU SUPPORT 270×43×143mm (L×W×H) 270×43×143mm (L×W×H) POWER SUPPLY COMPATIBILITY Flex-ATX (150×80×40mm) Flex-ATX (150×80×40mm) 2.5″ / 3.5″ DRIVES …
Velka 3
Velka 3 is a premium 4L Mini-ITX case. The case uses full galvanised steel construction, with textured suface finish for better durability. The Velka 3 can be purchased on Velkase.com for US$159.99, excluding riser cable. SPECIFICATIONS MODEL v2.1 v3 DIMENSIONS 189×96×218mm (L x W x H) 184×99×219mm (L x W x H) VOLUME 3.9 Litres 4 Litres MATERIALS Aluminium;Galvanised & Stainless Steel Galvanised Steel (Powdered Coated) CASE I/O N N MOTHERBOARD SUPPORT Mini-ITX Mini-ITX CPU COOLER CLEARANCE 37mm 37mm PCIE …
Lian-Li / DAN A4 H2O
DAN A4 H2O is 11L aluminium Mini-ITX case, created in collaboration with Lian-Li & DAN Cases. Prices start at US$129 for PCIe 3.0 and US$169.99 for PCIe 4.0 version. The A4 H2O is available via Newegg, CaseKing & Overclockers UK. SPECIFICATIONS MODEL A4-H2O DIMENSIONS 326 x 140 x 244mm (L x W x H) VOLUME 11.1 Litres MATERIALS Aluminium & Steel I/O 2x HD AudioUSB 3.0 Type-AUSB 3.1 (Gen 1) Type-C MOTHERBOARD COMPATIBILITY Mini-ITX MAX CPU COOLER HEIGHT 55mm EXPANSION …
Velka 7
Velka 7 is a premium Mini-ITX case at 6.2L in volume. The case uses full galvanised steel construction, with textured suface finish for better durability. The Velka 7 can be purchased on Velkase.com for US$199, excluding riser cable. SPECIFICATIONS MODEL v2.1 v3 DIMENSIONS 177×111×303mm (L×W×H) 178×115×304mm (L×W×H) VOLUME 5.9 Litres 6.2 Litres MATERIALS AluminiumGalvanised & Stainless Steel Galvanised Steel (Powdered Coated) CASE I/O N N MOTHERBOARD SUPPORT Mini-ITX Mini-ITX CPU COOLER CLEARANCE 47mm 48mm PCIE EXPANSION SLOTS 2 2 GRAPHICS …
SGPC K39
SGPC K39 v2 is an SFF ITX case, at 4L in volume. Unfortunately the K39 v2 has been discontinued and replaced by the K39 v3 which comes in at 5.2L. The case is available on Amazon & AliExpress (paid links) SPECIFICATIONS MODELS K39 v2 K39 v3 DIMENSIONS 180×100×220mm (L×W×H) 198×119×220mm (L×W×H) VOLUME 3.96 Litres 5.18 Litres MATERIALS Aluminium SPCC CASE I/O N USB Type-AUSB Type-C MOTHERBOARD Mini-ITX Mini-ITX CPU COOLER 47mm 55mm EXPANSION SLOTS 2 2 GRAPHICS CARD 180×43mm 185×45mm …
